SPECIFICATION

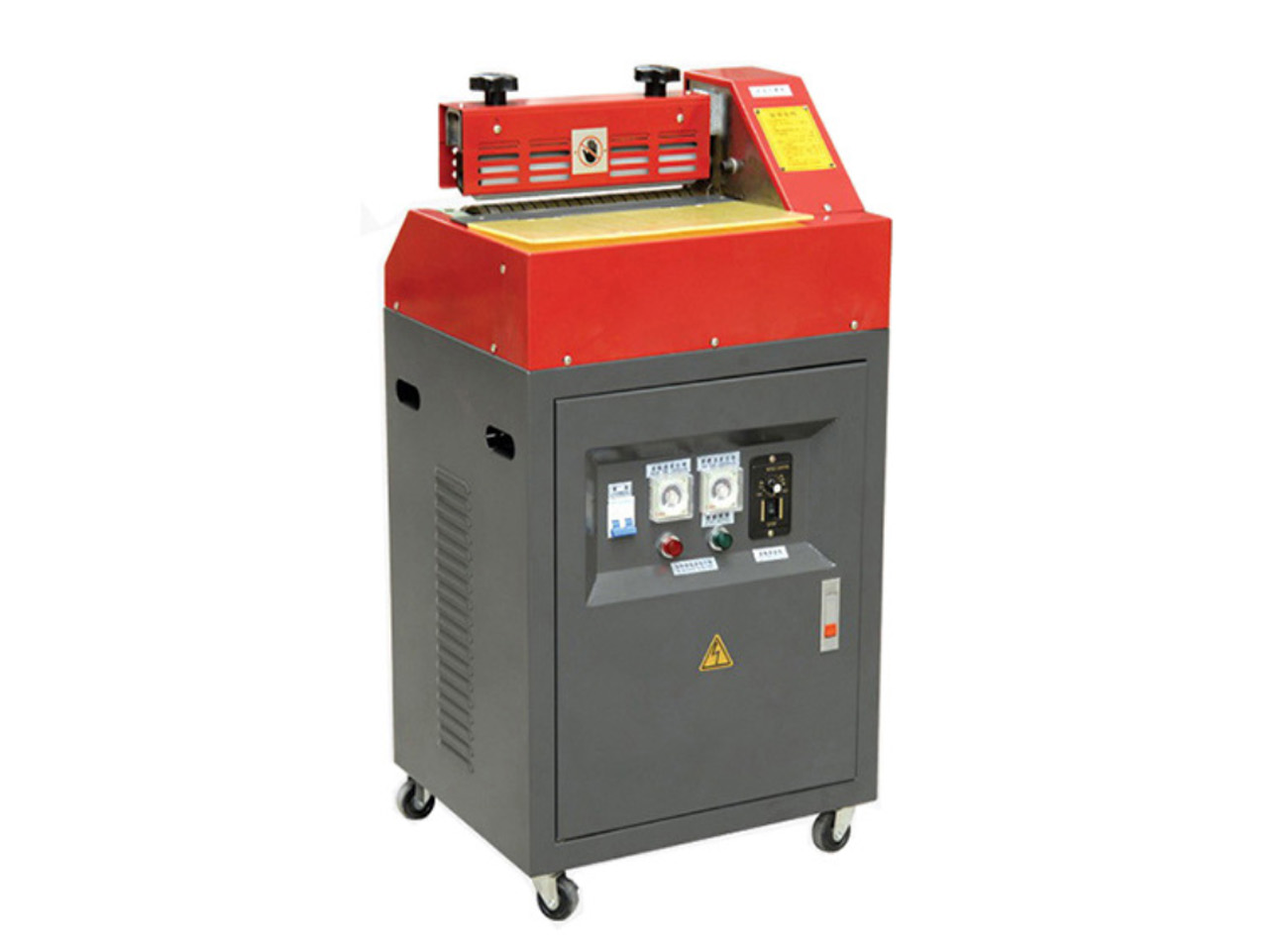

YS-300 Glue Coating Machine is a great tool for manufacturers, it uses the roller to apply hot melt adhesive coating on footwear, leather wares, EVA foam, paper box, construction material, instruments. This machine comes with two sizes, 300mm width model and 500mm width model.
Main Technical Parameters |
Max product width | 300mm |
Product thickness | 2-25mm |
Melting speed | 7kg/hour |
Working temperature | 40℃-230℃ |
Glue tank capacity | 5L |
Machine size | 500*450*900mm |
Machine weight | 50kg |
Machine power | 3KW/AC220V |
Main Features
1. The motor adopts a stepless speed change method, and the roller speed can be adjusted according to the work requirements.
2. The temperature of the glue tank and roller can be controlled independently.
3. Anti-entanglement device to prevent work items from being caught in the glue storage tank.
4. The glue tank is treated by Teflon, and the glue is easy to change, which effectively prevents the hot melt glue from carbonizing.
5. The thickness of the material and the thickness of the glue can be adjusted.
