SPECIFICATION

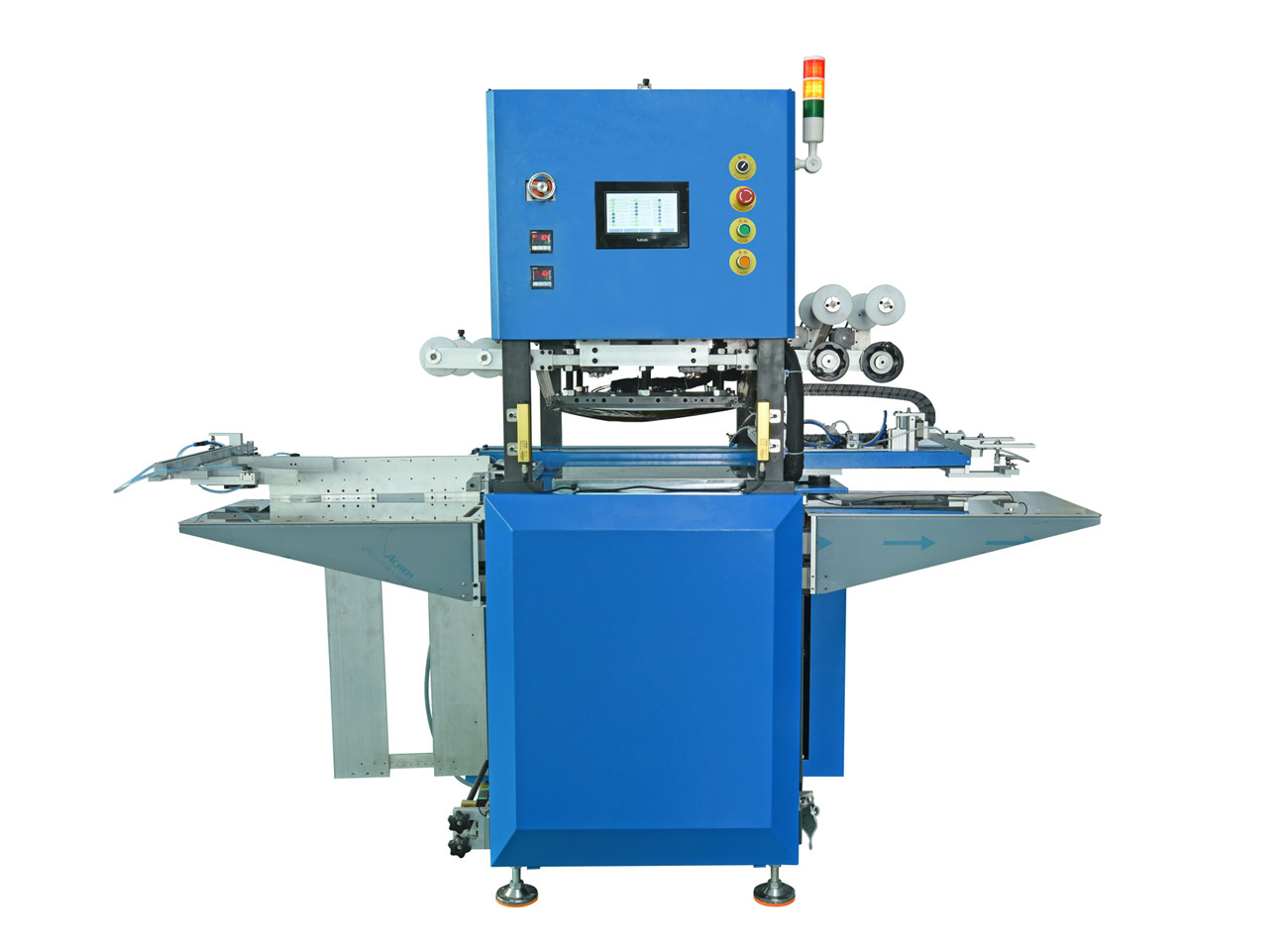

This machine is specifically designed to offer rigid box manufacturers an economical solution, for their very budget-friendly price, simple job setting and ease in machine operation. It can do hot stamping on finished rigid boxes.
Main Technical Parameters |
Max Box size L*W | 280*280mm |
Min Box size L*W | 50*50mm |
Max stamping area L*W | 230*200mm |
Min stamping area L*W | 1*1mm |
Working speed | 1500-2000 pcs/hour |
Max paper stacking height | 650 mm |
Machine size | 2100*1000*2100mm |
Machine weight | 900kg |
Main Features
1. Stable mechanism, this machine is driven by servo motors, simple, accurate and stable;
2. Small size, easy to operate as it only needs one operator;
3. User-friendly UI which makes it simple to do job setting, anyone following the machine instruction can easily set different jobs.
