SPECIFICATION

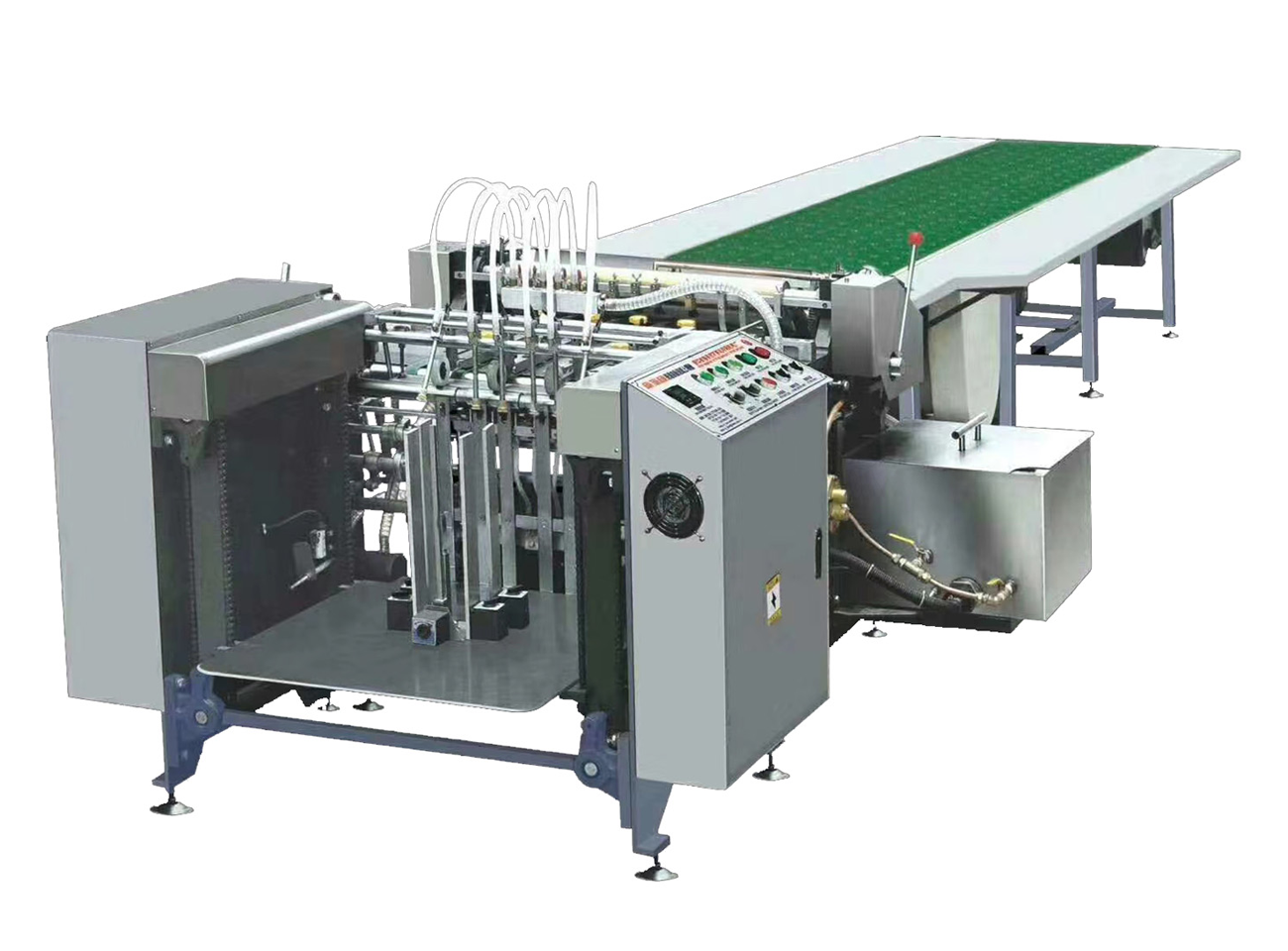

YS-850 Automatic Gluing Machine uses an air suction device to lift up papers and feed papers to the gluing roller, followed by a conveyor belt to transport the glued papers to the next process. The belt has air holes and air suction function so the papers are transported steadily. This machine is an essential part of rigid box making processes, many other machines work around it. For a complete solution please contact us for further consultative service.

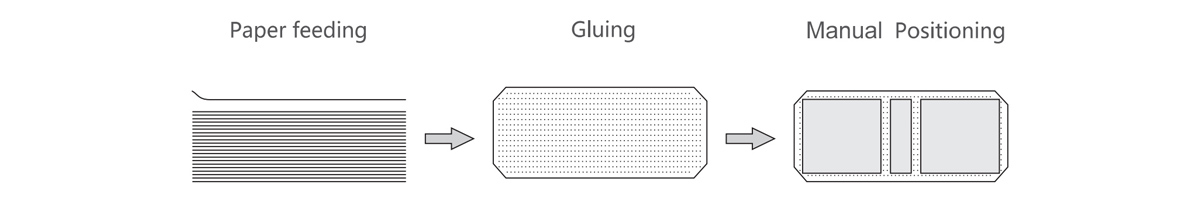

Working Flow
Main Technical Parameters |
Max Paper size | Length unlimited*Width 800mm |
Min Paper size | Length unlimited*Width 80mm |
Working speed | 7-40 pcs/min |
Conveyor belt size | W850mm*6000mm |
Machine size | 6350×1650×1300mm |
Machine weight | 1150kg |
Machine power | 9KW/AC380V |
Main features
1. Automatic paper feeding and gluing.
2. Automatic glue temperature control with 24 hour timer.
3. The conveyor belt has a powerful air suction function that prevents papers from curling and bubbling.
4. The speed and the gradient of the conveyor belt can be adjusted.
5. The scrapping blades (the ones equipped on the roller) do not need to be washed.
6. The feeding and the conveyor belt can be working independently.
