SPECIFICATION

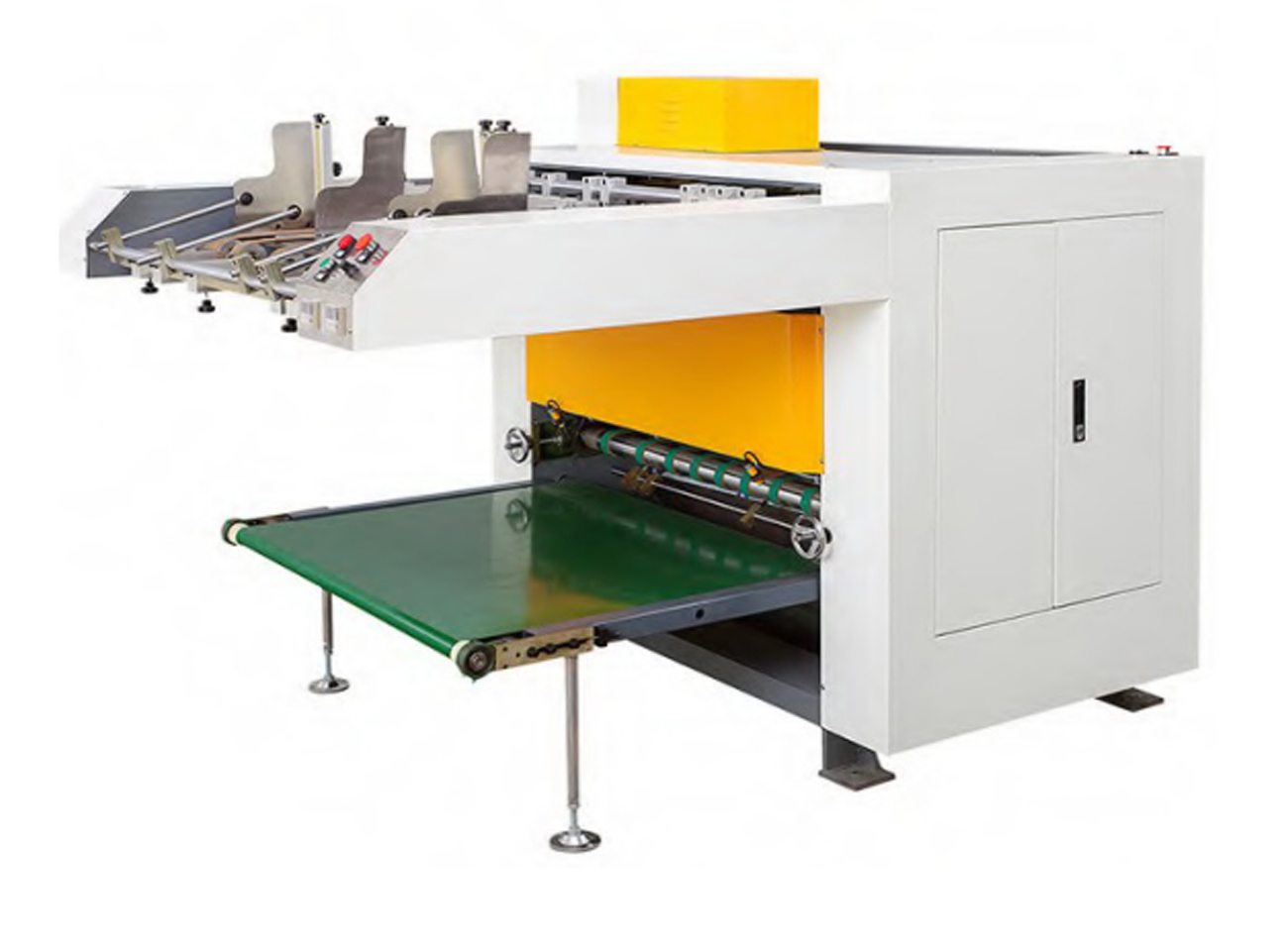

YY-GM1100 Automatic Grooving Machine is mainly designed to groove V slots for paper grayboard, cardboard and other industrial paperboard. It fully automates all the processes as it’s equipped with an automatic feeder, automatic waste discharger and automatic finished product receiver.

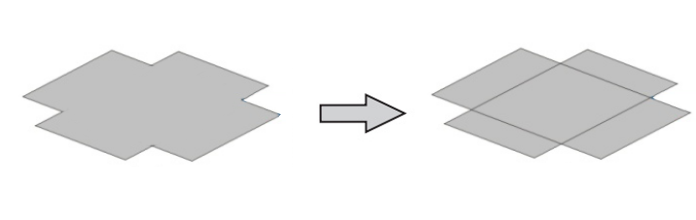

Working Flow
Main Technical Parameters |
Board width | Width 50-920mm |
Board length | Length 120-600mm |
Board Thickness | 0.5-3mm |
Space between slots | 0-900mm |
Working speed | 80m/min |
Grooving Angle | 85-140 degree |
Machine size | 2010×1560×1550mm |
Machine weight | 1180kg |
Machine power | 220V/2.2kw |
Main features
1. No deckle edge, dust free, smooth v-slots.
2. Automatic feeder with latest design, improves the production speed.
3. The machine adopts the latest unilateral feeding method, which allows the cardboard to move accurately and without deviation,especially a significant improvement for small size products.
4. This machine can automatically discharge waste while it’s running.
5. It comes with a knife sharpener for free.
6. The machine has three spindles joined in movement, it ensures the precision between the feeding unit to pressing unit.
