SPECIFICATION

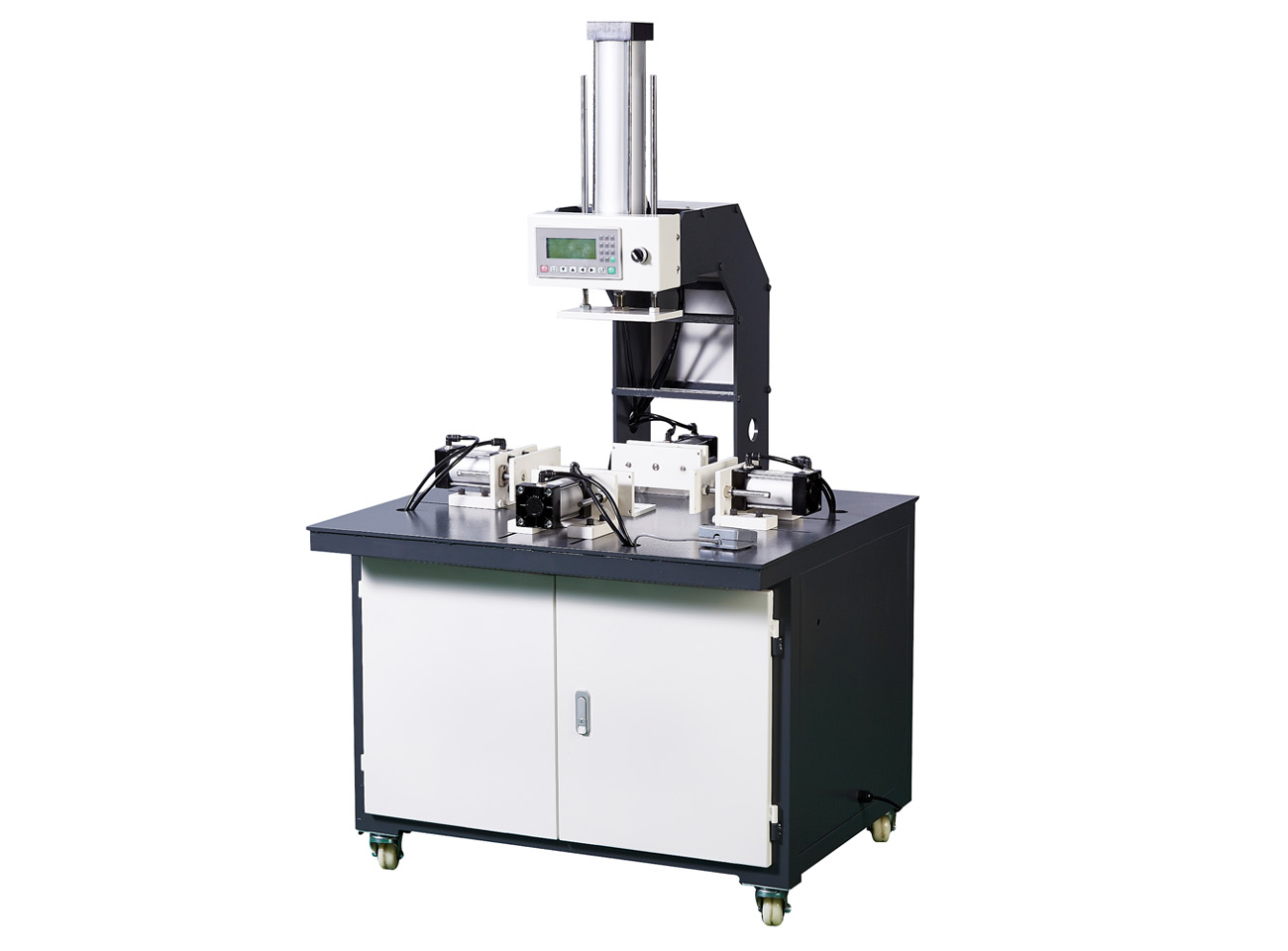

MZ-500 bubble pressing Machine is a semi automatic model specifically designed to bubble press the lid & base(set-up) rigid boxes and sleeve boxes. Its high pressure pressing and stable structure make it a great tool for box manufacturers to avoid issues caused by manual bubble-removing which is the plastic blade swiping method, this causes scratches and is inefficient. You need this machine, if you are doing it manually.
Main Technical Parameters |
Max box size (L Model) | L600*W450mm |
Max box size (M Model) | L400*W350mm |
Min box size | L60*W60 mm |
Working speed | 0-25Pcs/min |
Machine size | 760*710*1600 |
Machine weight | 200KG |
Machine power | AC220V/<1kw |
Max box size (L Model) | L600*W450mm |
Main Features
1. Touch screen user-friendly interface, easy for job and parameter setting.
2. Pneumatic system, once operators input the size of the box and the mold, the machine can automatically adjust and the data will be stored in the computer for the next project with the same box.
3. Super high pressure, great bubble-pressing effect, can help factories deal with issues caused by low quality glue.
