SPECIFICATION

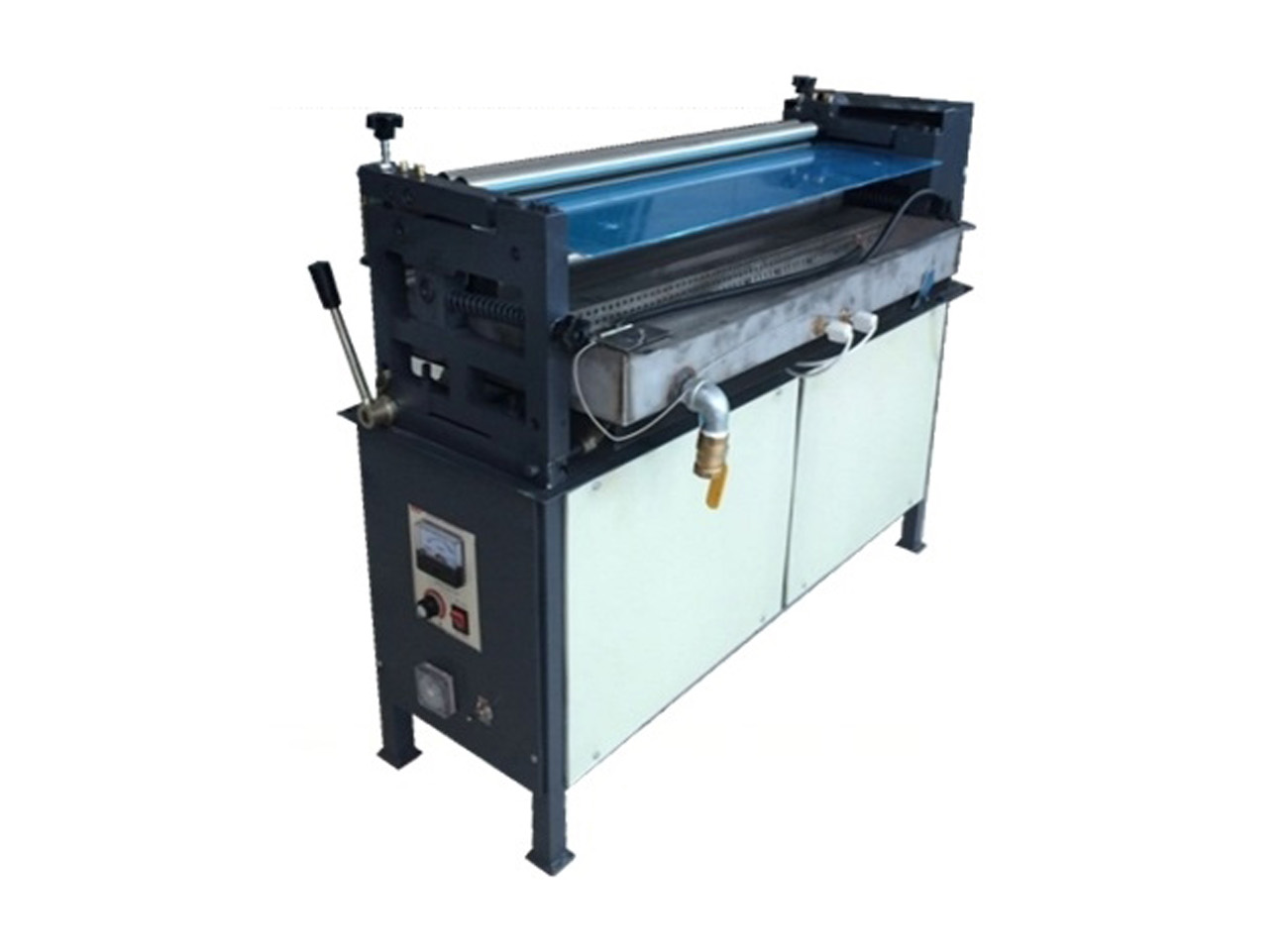

YY-720J Manual Gluing Machine is a special equipment for paper gluing in the printing and packaging industry. This machine uses a large number of stainless steel components, which greatly increases the corrosion ability of the equipment. The machine has beautiful appearance, simple debugging, high production efficiency and low labor intensity. The transmission is balanced and the maintenance is convenient. The hot melt adhesive powder is used to avoid the shrinkage deformation and mold problems compared with traditional white glue. It is an ideal choice for large, medium and small packaging industries.
Main Technical Parameters |
Max product width | 720 mm |
Product thickness | 0.1mm above |
Paper Entering Speed | 0-30 m/min |
Machine size | 1450*400*890mm |
Machine weight | 100kg |
Machine power | 5KW/AC220V |
Max product width | 720 mm |
Product thickness | 0.1mm above |
Main Features
1. The motor and the roller speed can be adjusted according to the work requirements.
2. The glue is easy to change, which effectively prevents the hot melt glue from carbonizing.
3. The thickness of the material and the thickness of the glue can be adjusted.
