SPECIFICATION

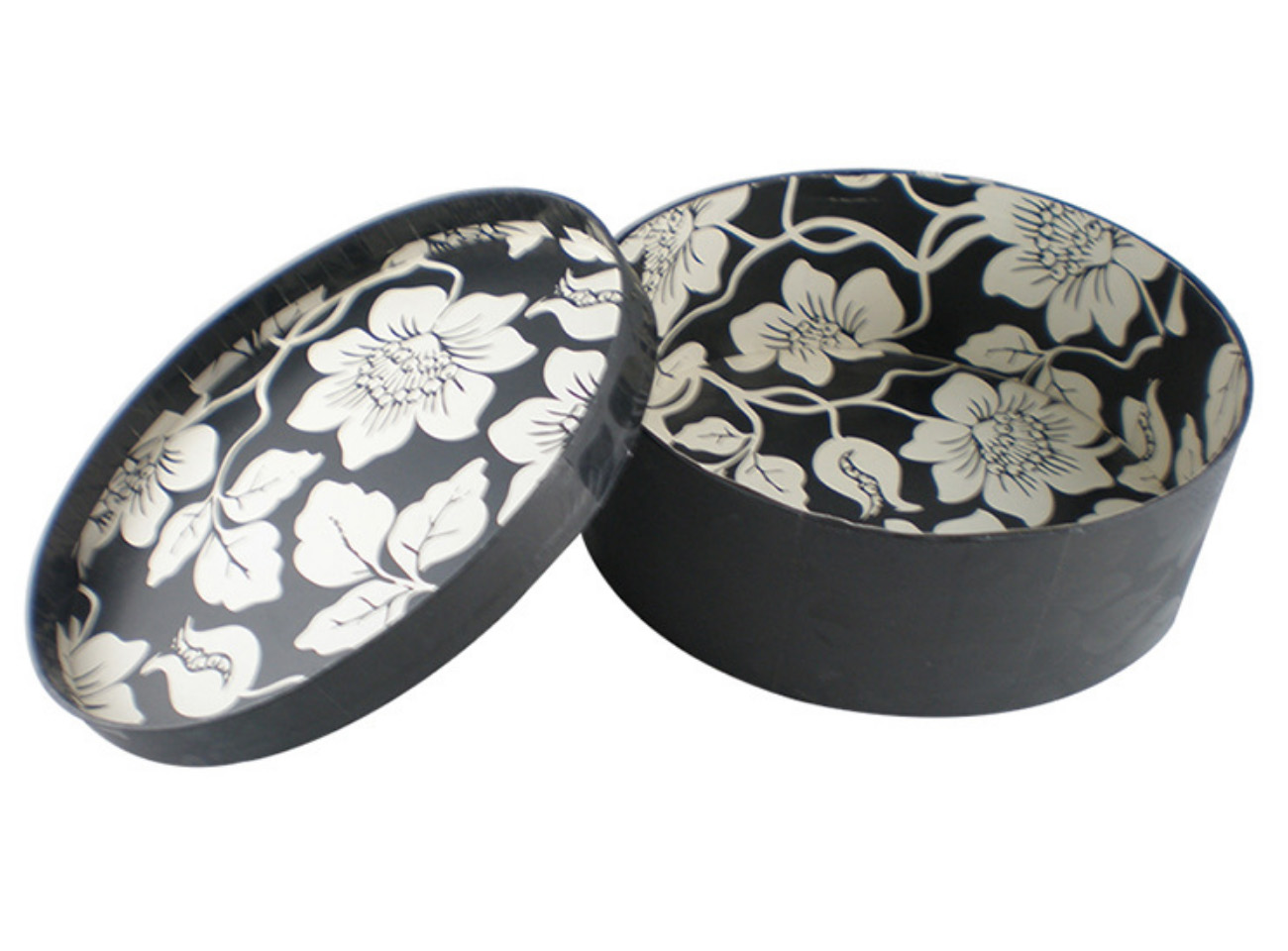

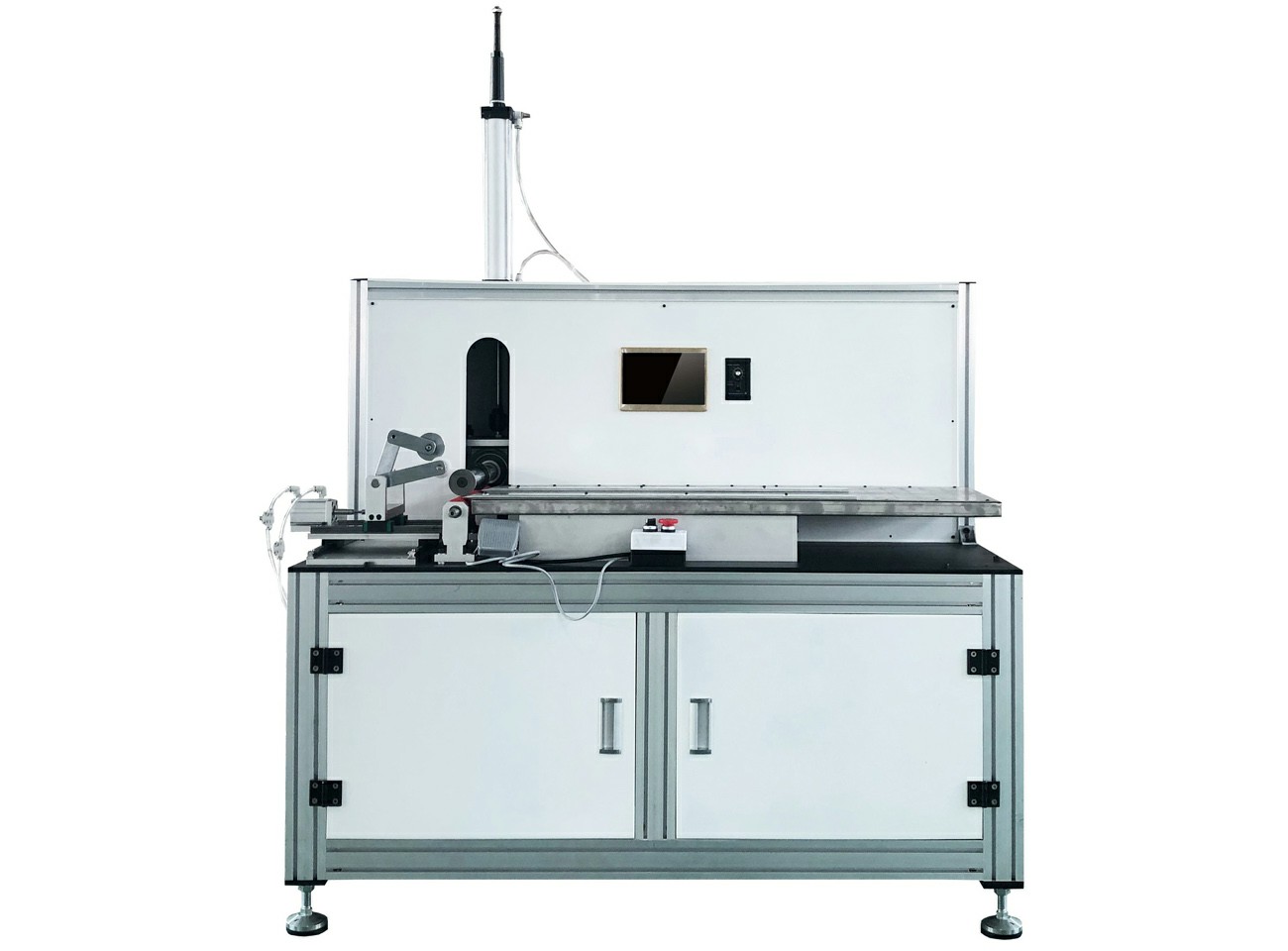

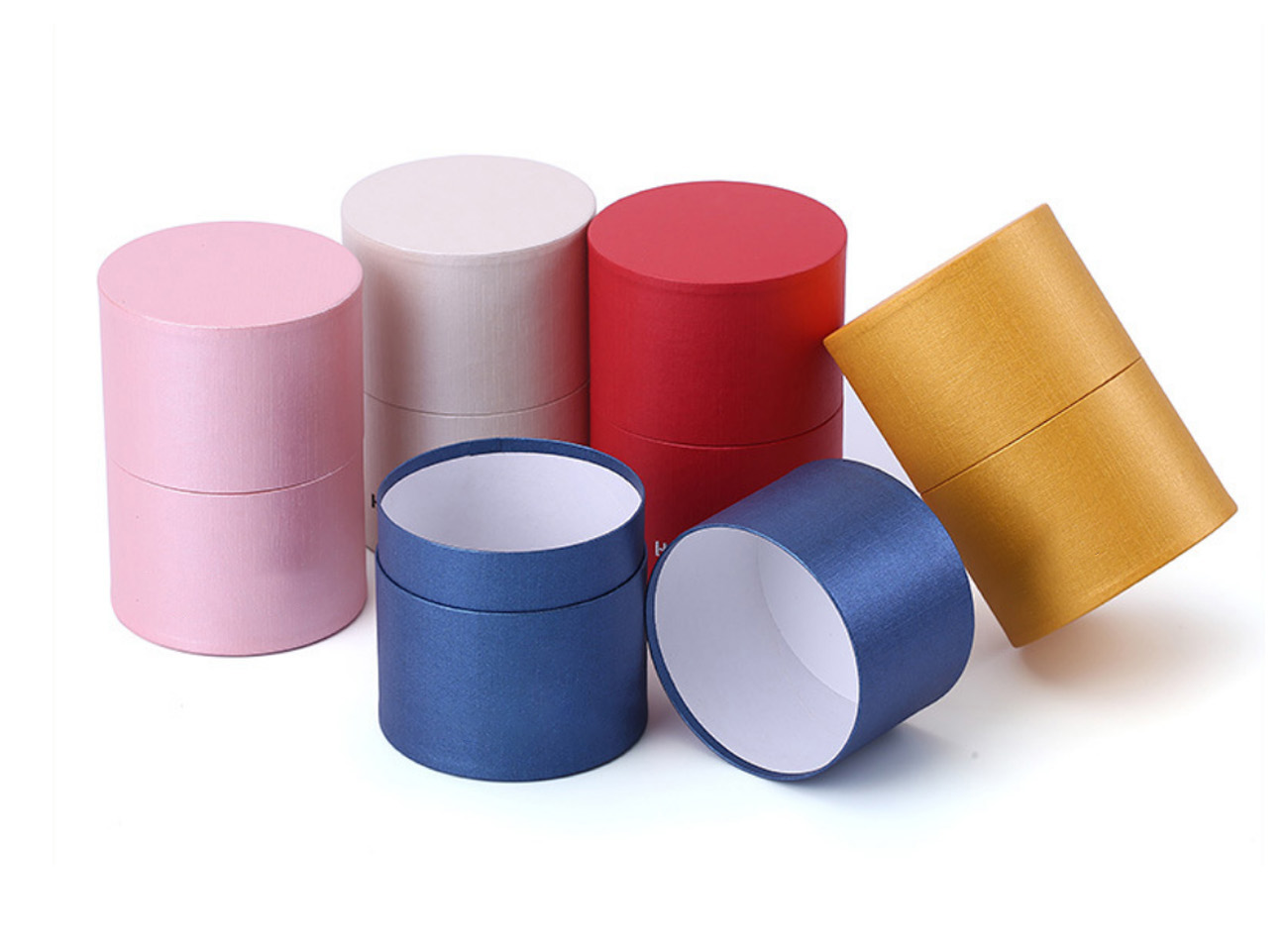

JL-002 Semi-automatic rigid round box wrapping machine is mainly used to automate the paper wrapping process of rigid round box making. Simple operation allows the machine operator to become good with it really quickly. The finished round boxes are bubble-free and glue-stain-free . It is the most essential machine in rigid round box making. Normally it works with JL-003 to finish a complete production process.
Main Technical Parameters |
Box Diameter | 60mm-280mm |
Box Height | 20mm-200mm |
Speed | 8-10Pcs/min |
Machine size | 1500×1000×1600mm |
Machine weight | 180kg |
Machine power | 1KW/AC220V |
Main features
1. The paper feeding platform has an air-suction function, sticking the paper to the paper tube is made easy and stable. The adjustable paper holder makes it super easy when changing different sizes of paper.
2. User-friendly touch screen, very convenient for setting parameters.
3. Base wrapping and side wrapping/labeling can be done at one process, improving efficiency.
4. This machine can work with price-friendly white glue or jelly glue, saving cost for manufacturers.
