SPECIFICATION

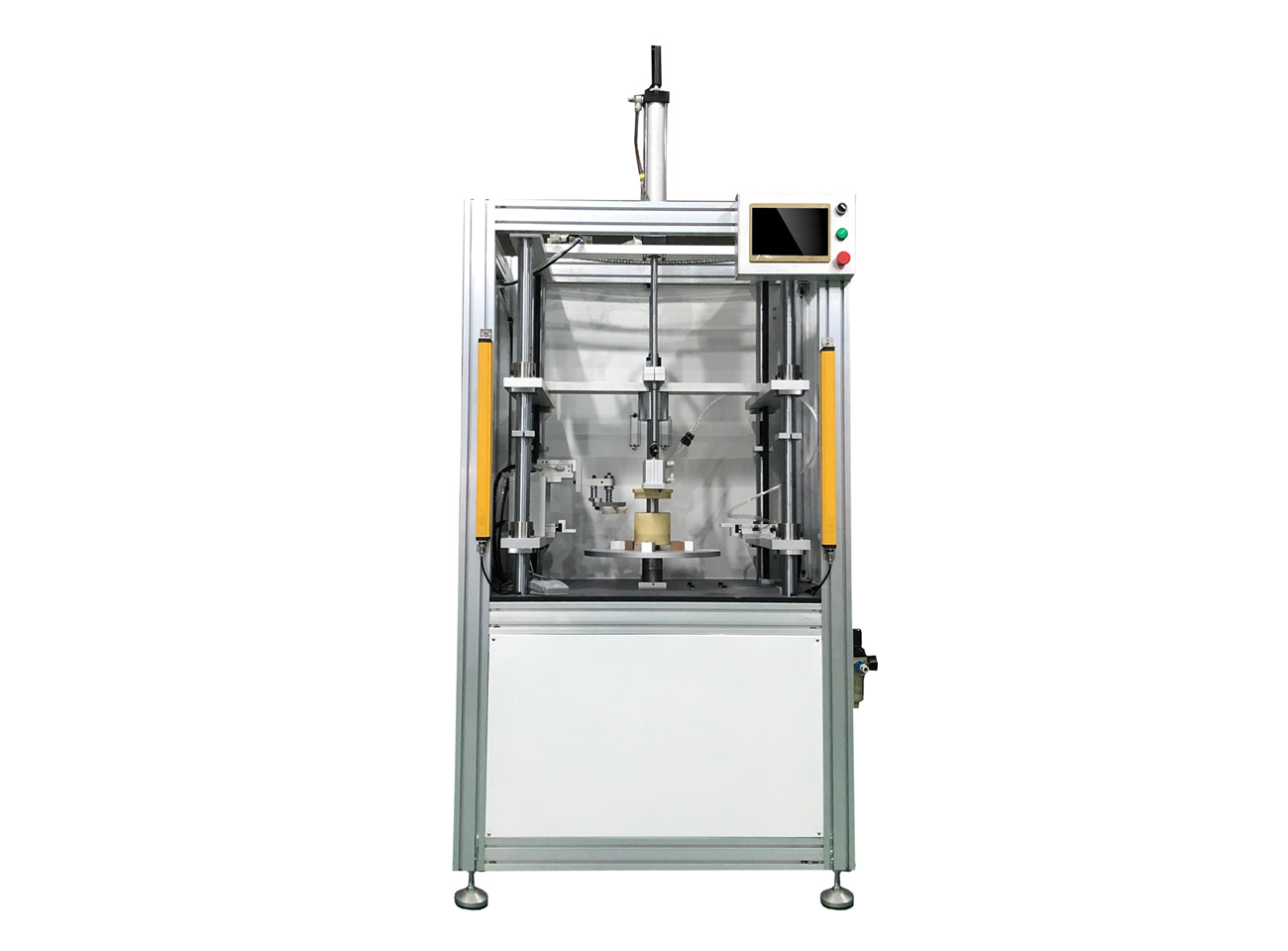

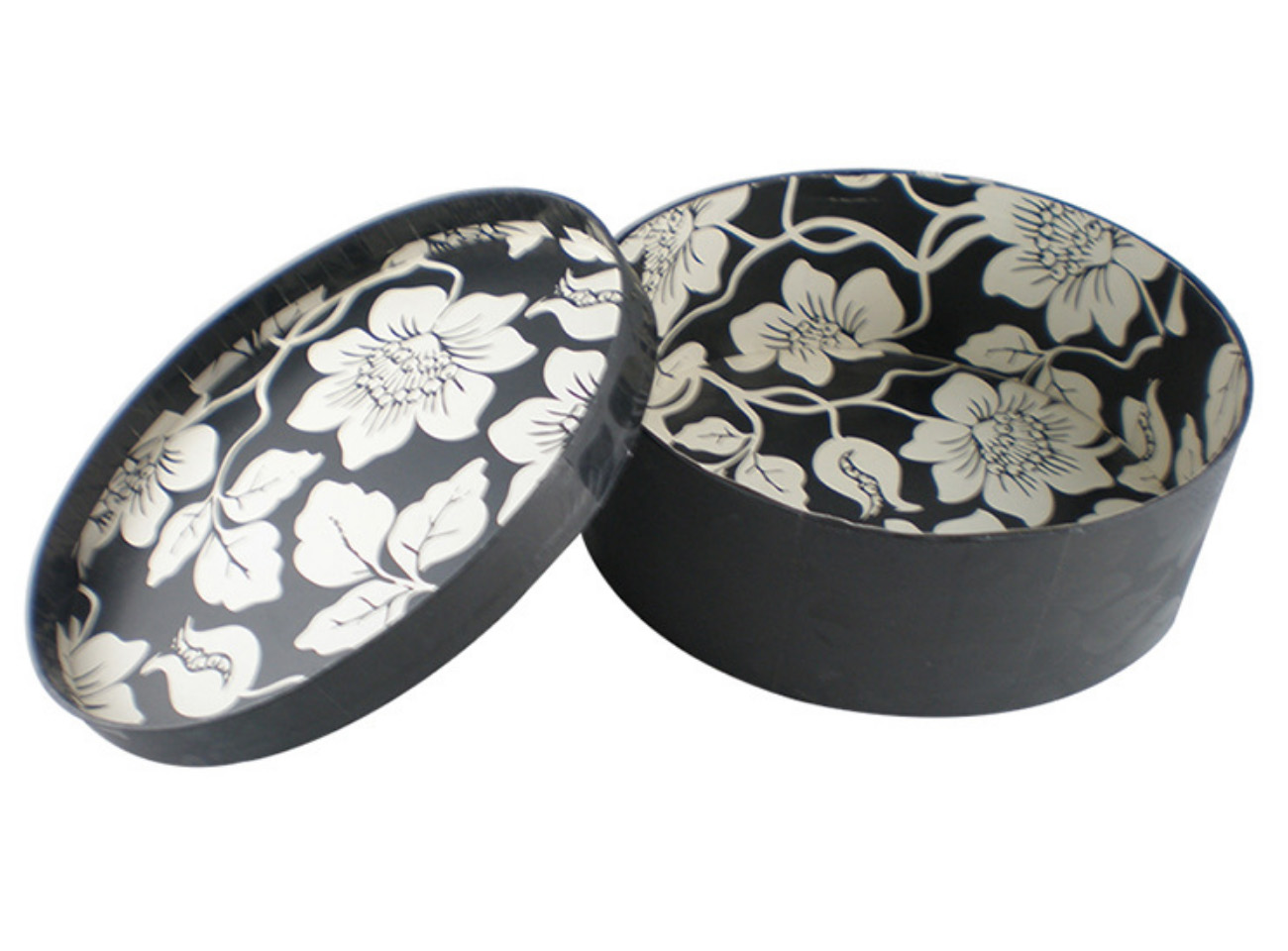

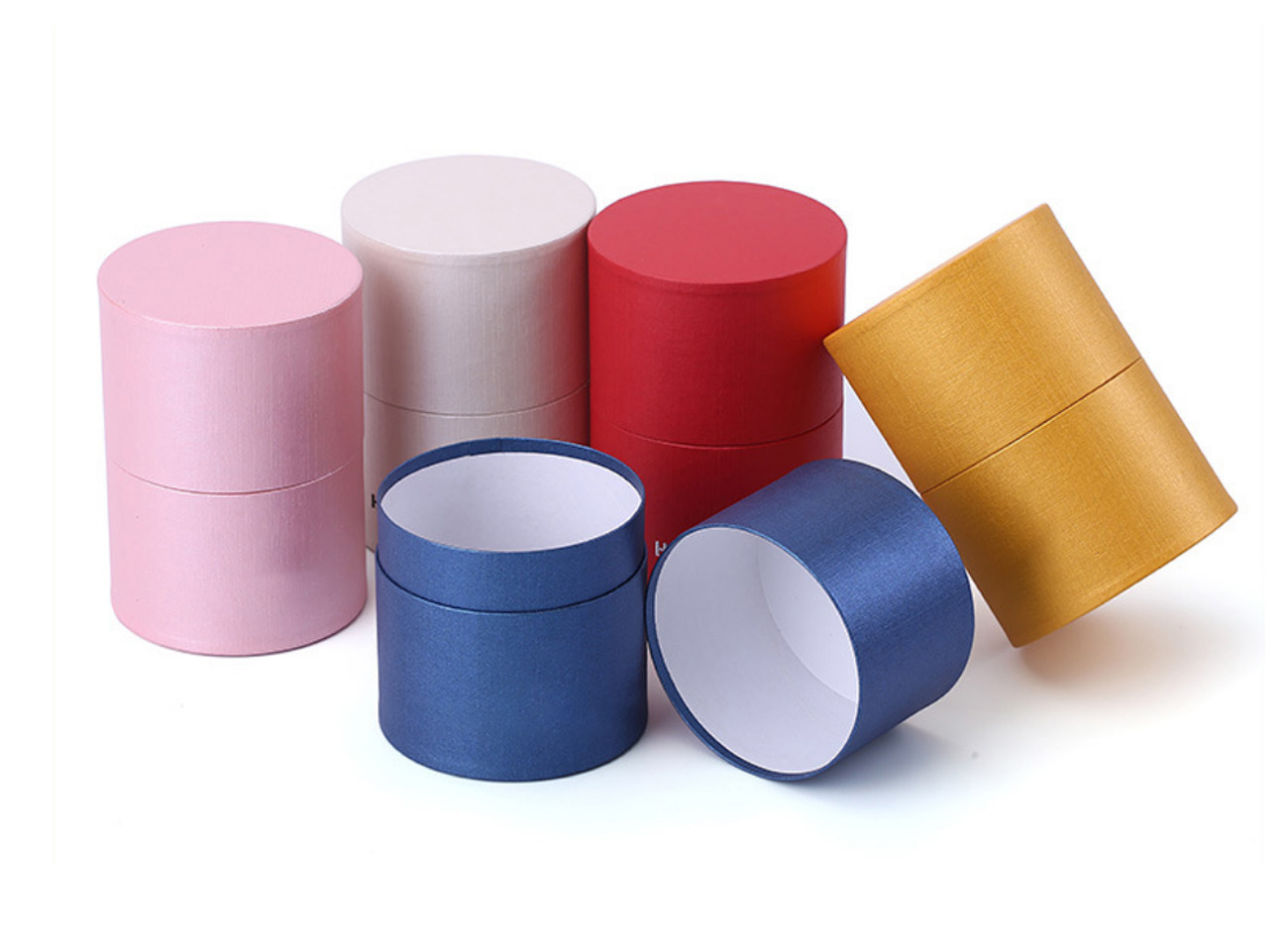

JL-003 Semi-automatic rigid round box edge-folding machine is mainly used to automate the edge-folding process of rigid round box making. Simple operation allows the machine operator to become good with it really quickly. Although this process can be done manually, this machine can improve the efficiency dramatically in rigid round box making. It works with JL-002 to finish a complete production process.
Main Technical Parameters |
Box Diameter | 60mm-250mm |
Box Height | 20mm-200mm |
Speed | 6-8 Pcs/min |
Machine size | 1000×700×2100mm |
Machine weight | 250kg |
Machine power | 200W/AC220V |
Main Features
1. Less glue stain, it reduces the chances of human-machine contact, leaving the round box glue stain-free or much less.
21. User-friendly operating process, it’s a one person job, it produces the same amount of boxes as 5 manual workers would.
3. This machine power is only 200W, the cost of running it is very low.
4. Super easy to change jobs, operators only need to change the mold to do a different box
