SPECIFICATION

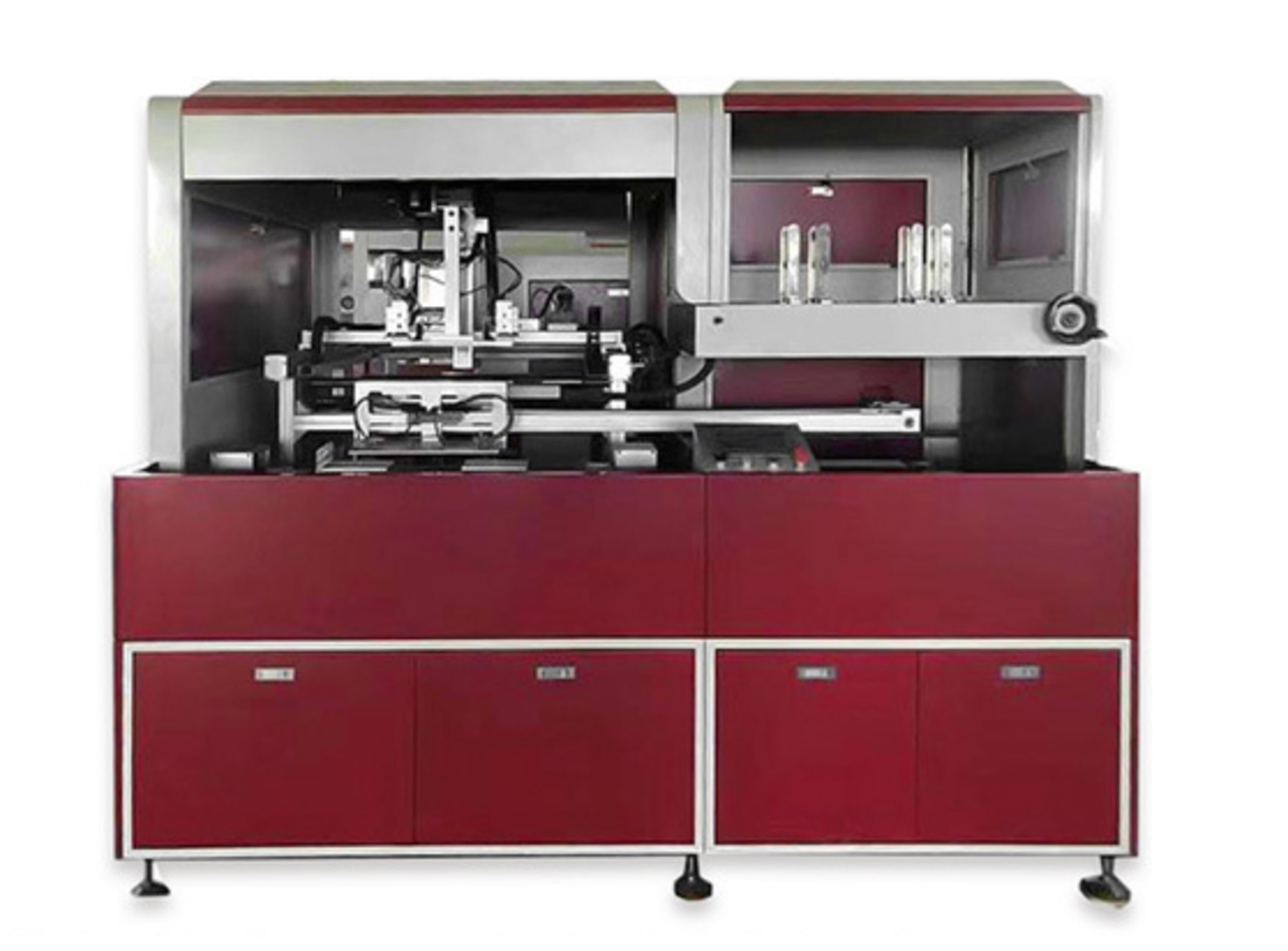

HSC-700A collapsible box wing wrapping machine is designed to automate the collapsible box side board wrapping process. It has the functions of automatic board feeding, automatic positioning and wings forming and bubble pressing. It’s simple to understand, easy to operate, quick to learn and very budget-friendly.

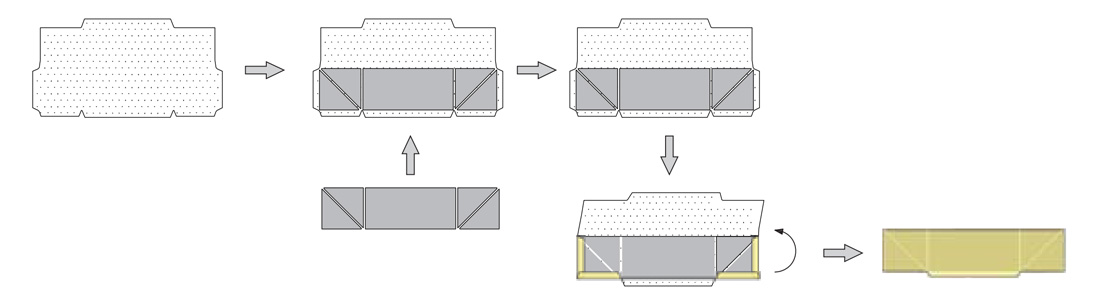

Working Flow
Main Technical Parameters |
Max wing size | 700*200mm |
Min wing size | 150*50mm |
Working speed | 10-12 pcs/min |
Air pressure | 0.5Mpa |
Voltage | AC220V |
Machine size | 2000*1900*1800mm |
Machine weight | 1000KG |
Grey board thickness | 0.3-8mm |
Paper thickness | 80-180g |
Main Features
1. Easy to operate: Click the switch once to complete the whole set of actions.
2. Save labor: 10-12 pieces / minute, which is several times the efficiency of manual making, saving 2-3 people.
3. Good effect: Use the machine to produce in batches, the quality is stable and uniform, and it is not easy to be empty, air bubbles, scratches.
4. The machine has movable casters, which can be placed at will, which is flexible and convenient.
