SPECIFICATION

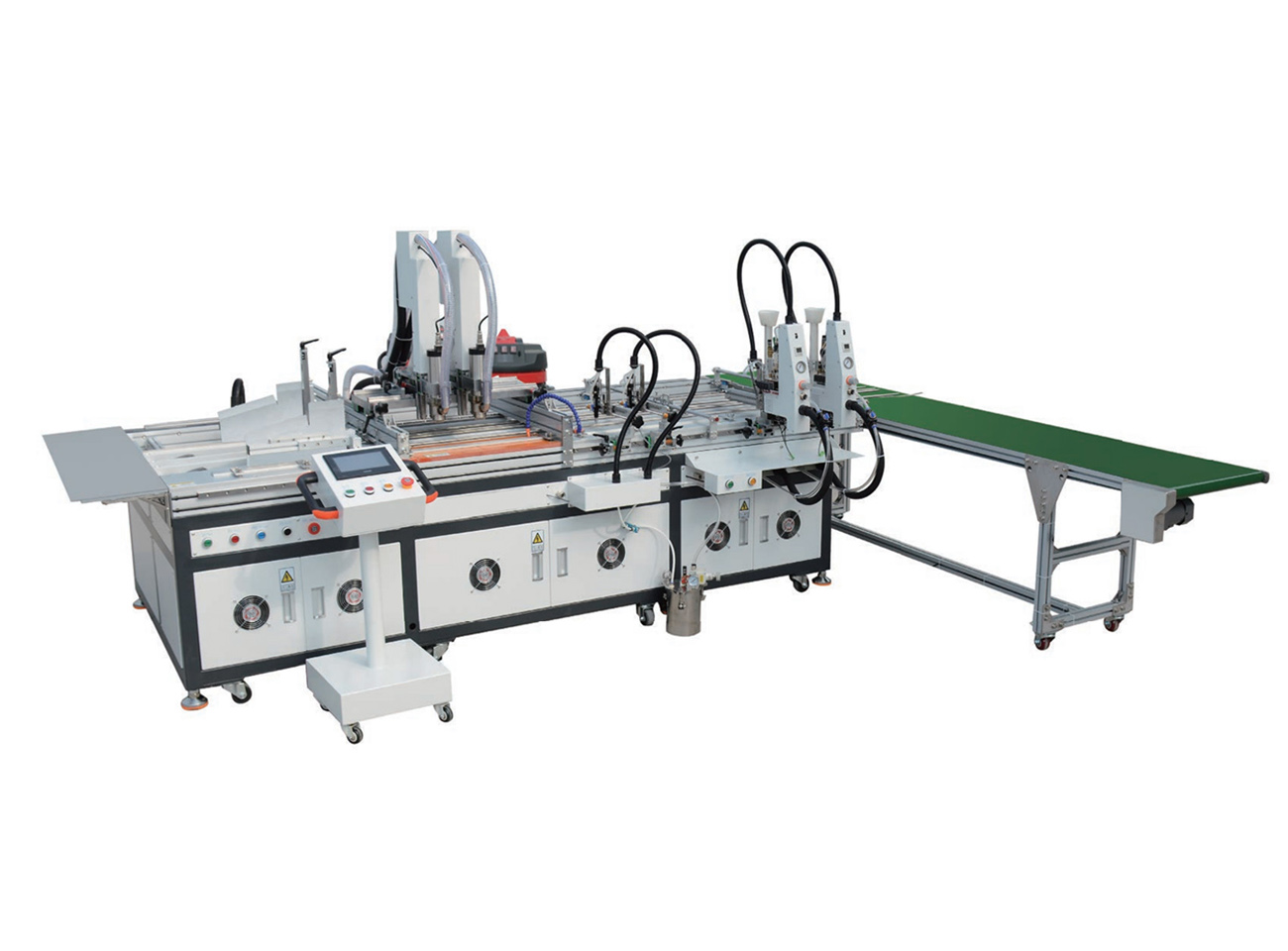

YY-9060CT is designed to automate the iron sheet and magnet pasting process of many types of rigid boxes. It has the functions of automatic feeding, automatic glue dispensing and automatic magnet/iron sheet placing. It’s widely praised by customers for its high efficiency, stability, high pass rate, small footprint and other advantages.
Main Technical Parameters |
Max cardboard size | 900mm×450mm |
Min cardboard size | 120mm×90mm |
Cardboard thickness | 1-3mm |
Max stacking height | 200-400mm |
Magnet diameter | 6-20mm |
Production Speed | 30-40 pcs/min |
Positioning accuracy | ≤ ± 0.1mm |
Space between holes | Min 85mm/Max 495mm |
Glue Tank Capacity | 2L |
Air Pressure | 0.6-0.8Mpa |
Main Features

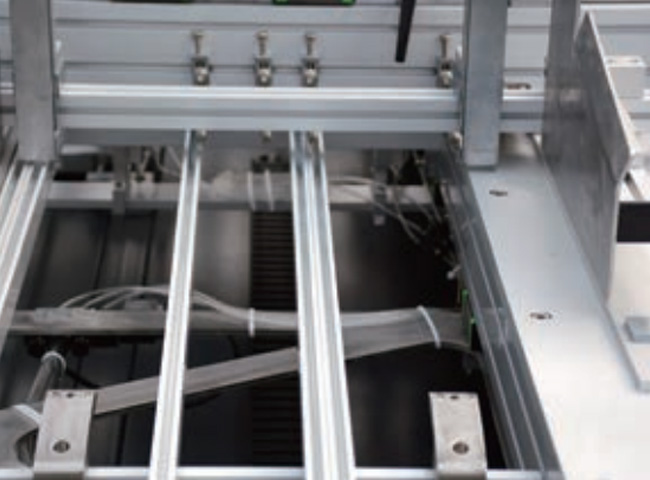

1. Feeding Unit: Depending on the dimensions of the paperboard, the feeding unit can be adjusted to ensure that the feeding process is smooth, stable and highly accurate.

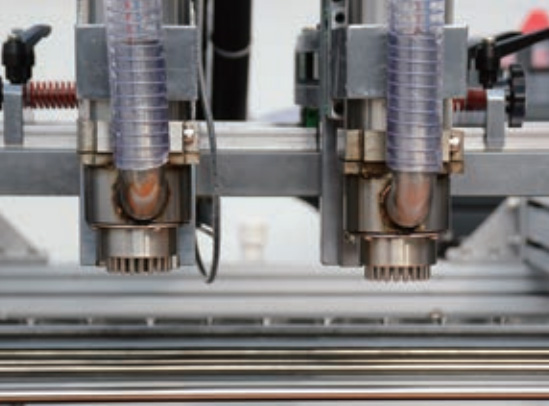

2. Drilling Unit: Automatic drilling, the drilling unit is equipped with an automatic vacuum cleaner and blowing system, which will clean up the waste after the drilling process. The depth and drilling diameter can be adjusted flexibly, which will prevent the uneven holes made by manual process.

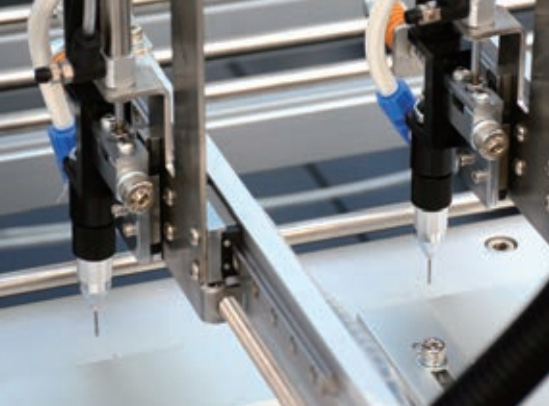

3. The area and position of the glue can be adjusted according to the product dimensions. This function effectively fixes the inaccuracy and glue leakage issues.

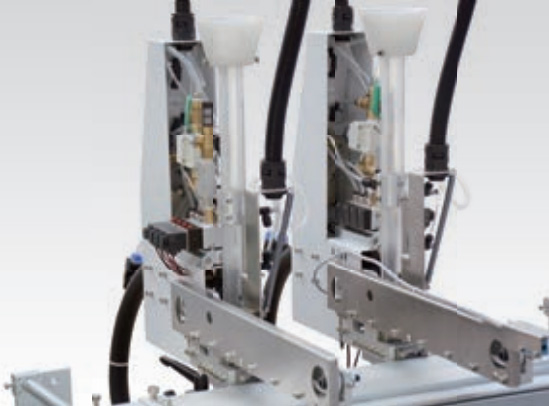

4. The pasting unit can paste 1, 2, or 3 (extension unit) pcs of magnets/iron sheet. The placing pressure, position, and speed are adjustable. Production mode for pasting single or double sheets/magnets can be programmed.

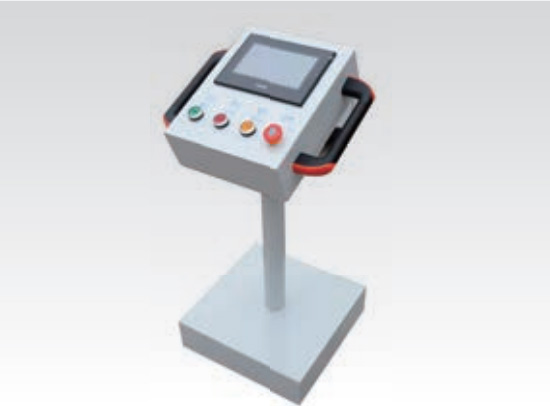

5. Console: The user-friendly touch screen user-interface controls the machine via PLC system.
Optional Con?guration:
Iron sheet feeding support device, it vibrates and shakes the feeding unit, to make feeding iron sheets easier and more convenient. This device is recommended for mass production.
