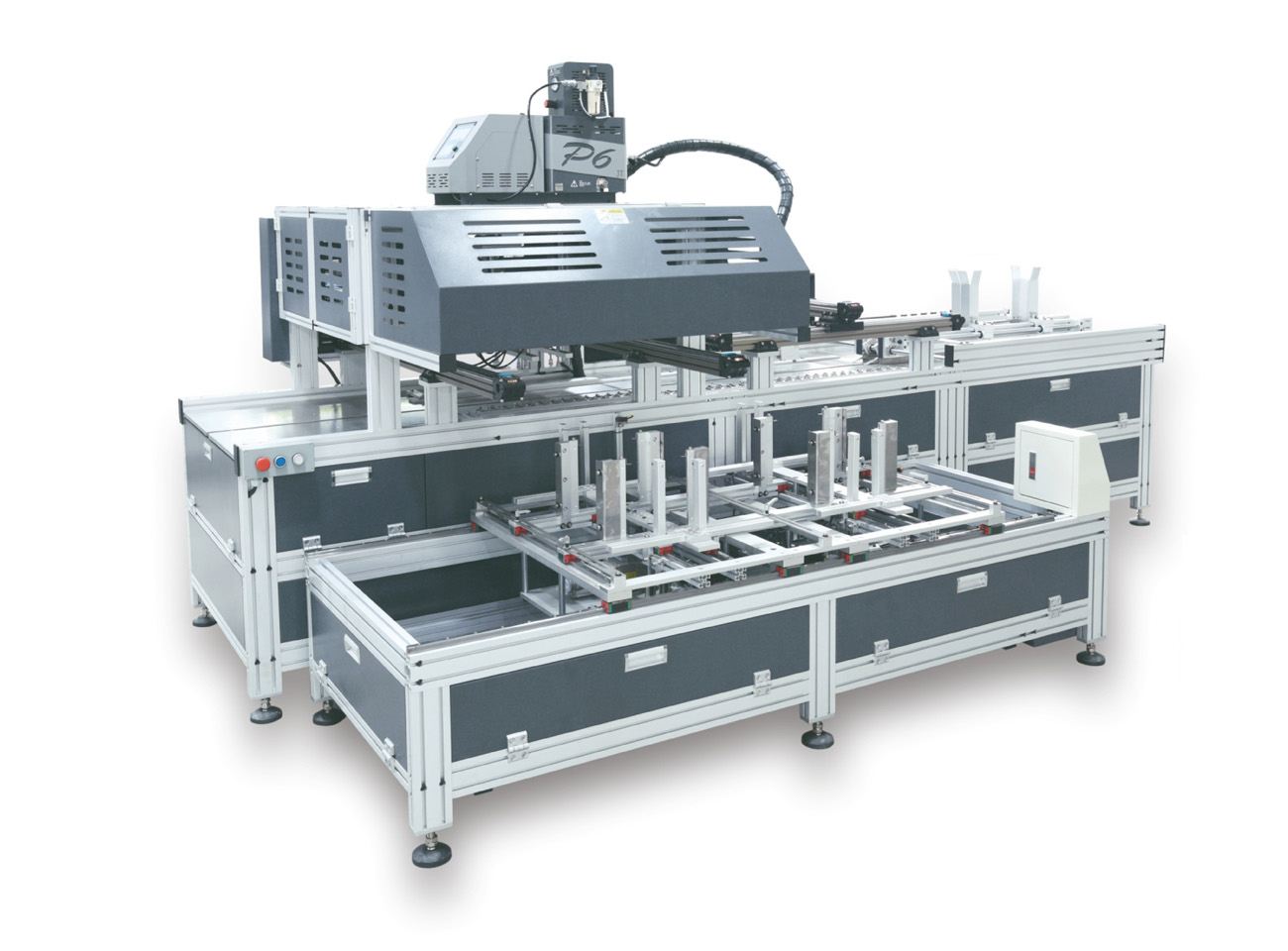

YY-900Z Collapsible Box Assembly machine is a model developed and manufactured independently by Yuanyi to automate collapsible rigid box making process fully. It can work with most of the collapsible rigid box products on the market, and it solves problems of the process being too complicated, taking too much time and consuming too much labor. It sprays glue and then places the wings onto the cases accurately and efficiently. This machine drastically increases the precision and working speed for the box manufacturers, highly recommended for large collapsible rigid box projects.

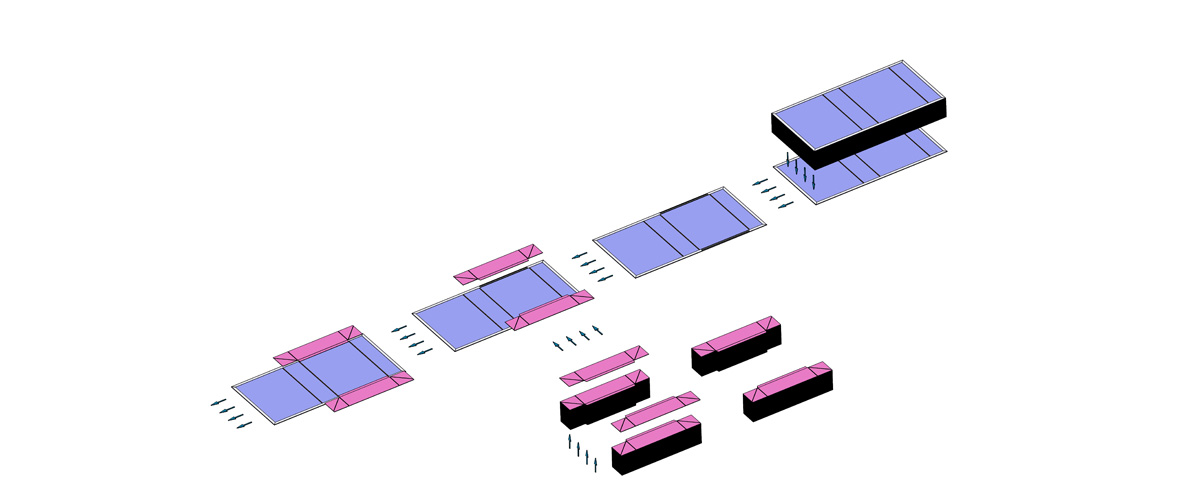

Working Flow
Main Technical Parameters |
Max case size | 900mm×450mm |
Min case size | 90mm×95mm |
Max wing size | 500mm×120mm |
Min wing size | 100mm×30mm |
Distance between wings | ≥200mm(inside-inside) ≤650mm (outside-outside) |
Speed | 18-30 pcs/min |
Positioning accuracy | ≤ ± 0.1mm |
Machine size | 3600×2000×2000mm |
Machine weight | 800kg |
Machine power | 8KW/AC220V |
Main Configuration
1. Japanese Panasonic PLC, frequency converter, temperature controller.
2. Japanese Panasonic photoelectric sensor.
3. Japanese Panasonic servo motor.
4. Japanese Panasonic servo drive.
5. Japanese Panasonic negative pressure switch.
6. Schneider Electric SA proximity switch sensor.
7. XWB DC motor.
8. Taiwan Meanwell power.
9. Jingtai hot melt glue box.
10. Pneumatic vacuum electronic components-Taiwan AIRTAC, XINGCHEN, AIRBEST.
Main Features
1.High safety, short setting and adjusting time, fully digital, manual debugging is not needed, which is convenient and fast.
2. Easy to operate, anyone can easily learn to use it well.
3. Fast processing speed, spraying in lines, which is glue saving, strong bonding. No leakage.
4.Automatic glue dispensing, diversified and simplified.
5. The bubble pressing process after the box glued to the rigid cover is precise and stable.
6. The servo motor and automatic control system used in each part are imported high-end accessories with high stability, high accuracy and long service life.
