SPECIFICATION

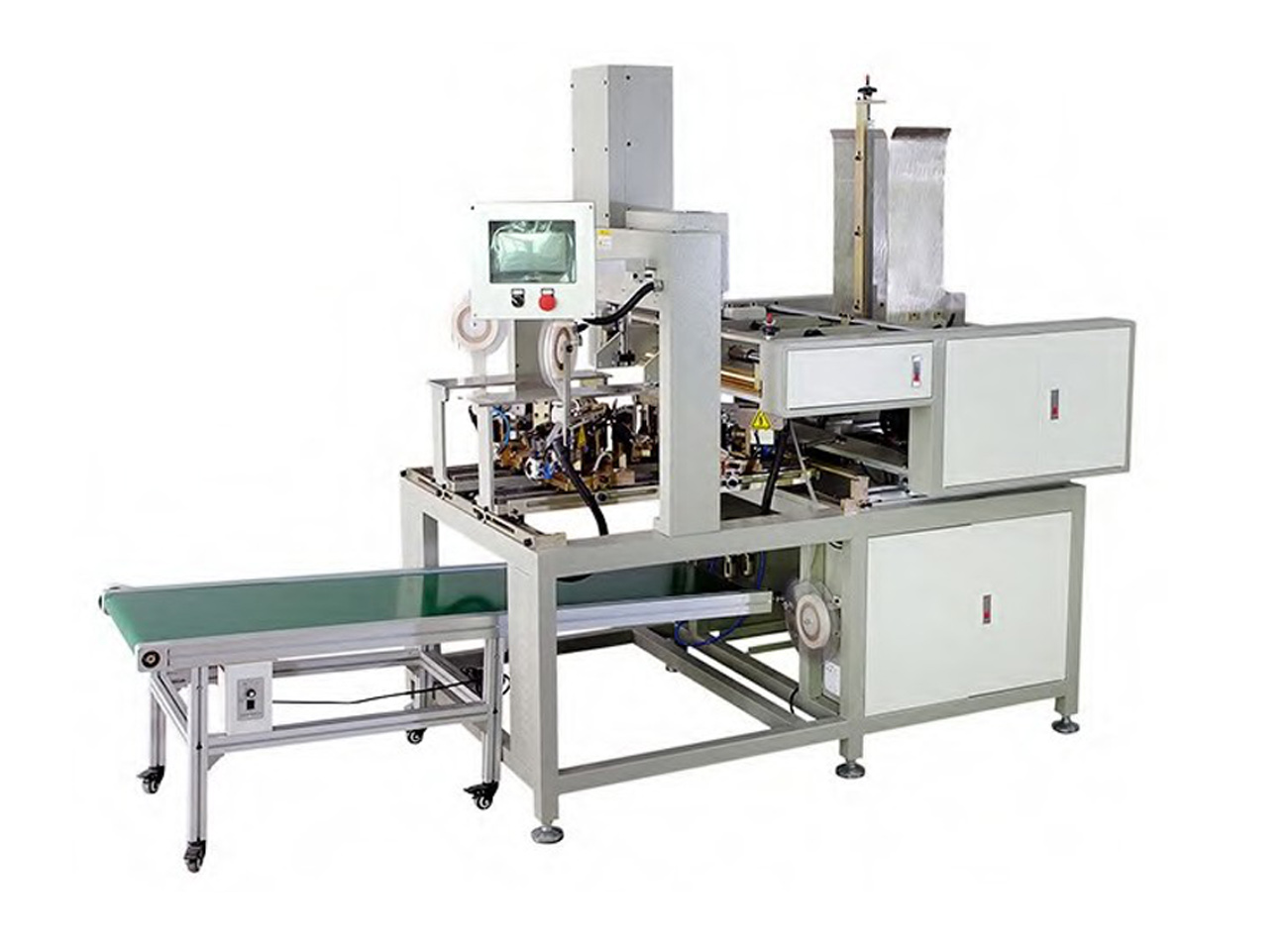

YY-ACP450 Automatic corner pasting/taping/sticking machine is designed for the positioning and forming of the set up box and the inner box. High-temperature adhesive tape is used to save cost. The posted product is square, stable, beautiful, fast and cheap. It is an indispensable main equipment which is widely used for making rigid box, jewelry box, phone box, shoe box and etc. The corner pasting machine could be used for production alone, and could also be matched with mechanical equipment such as feeder gluing machine, grooving machine, and forming machine to form a assembly line.

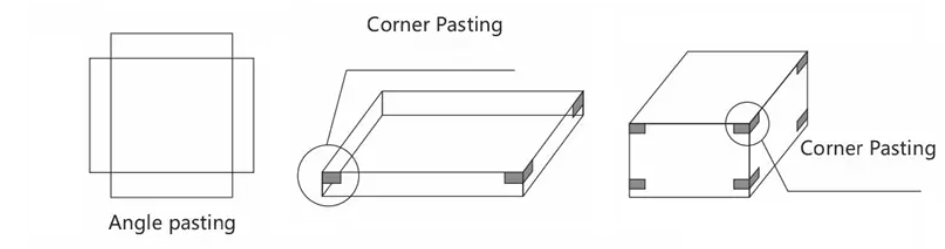

Working Flow
Main Technical Parameters |
Max Box Size | 450*450*150 mm |
Min Box Size | 50*50*10 mm |
Working speed | 60-100 pcs/min |
Tape Width | 19 mm |
Machine size | 1800*1100*1900mm |
Machine weight | Around 950kg |
Machine power | AC220V/2kw |
Main features
1. The design of this machine is novel, compact, safe, durable and easy to maintain.
2. Has the characteristics of simple structure, flexible and convenient operation and beautiful appearance.
3. Can produce gift box, rigid box, hard box and other paper products.
4. The whole casting structure, which has high manufacturing precision and great strength.
5. Fast speed, low price, it is the excellent machine.
