SPECIFICATION

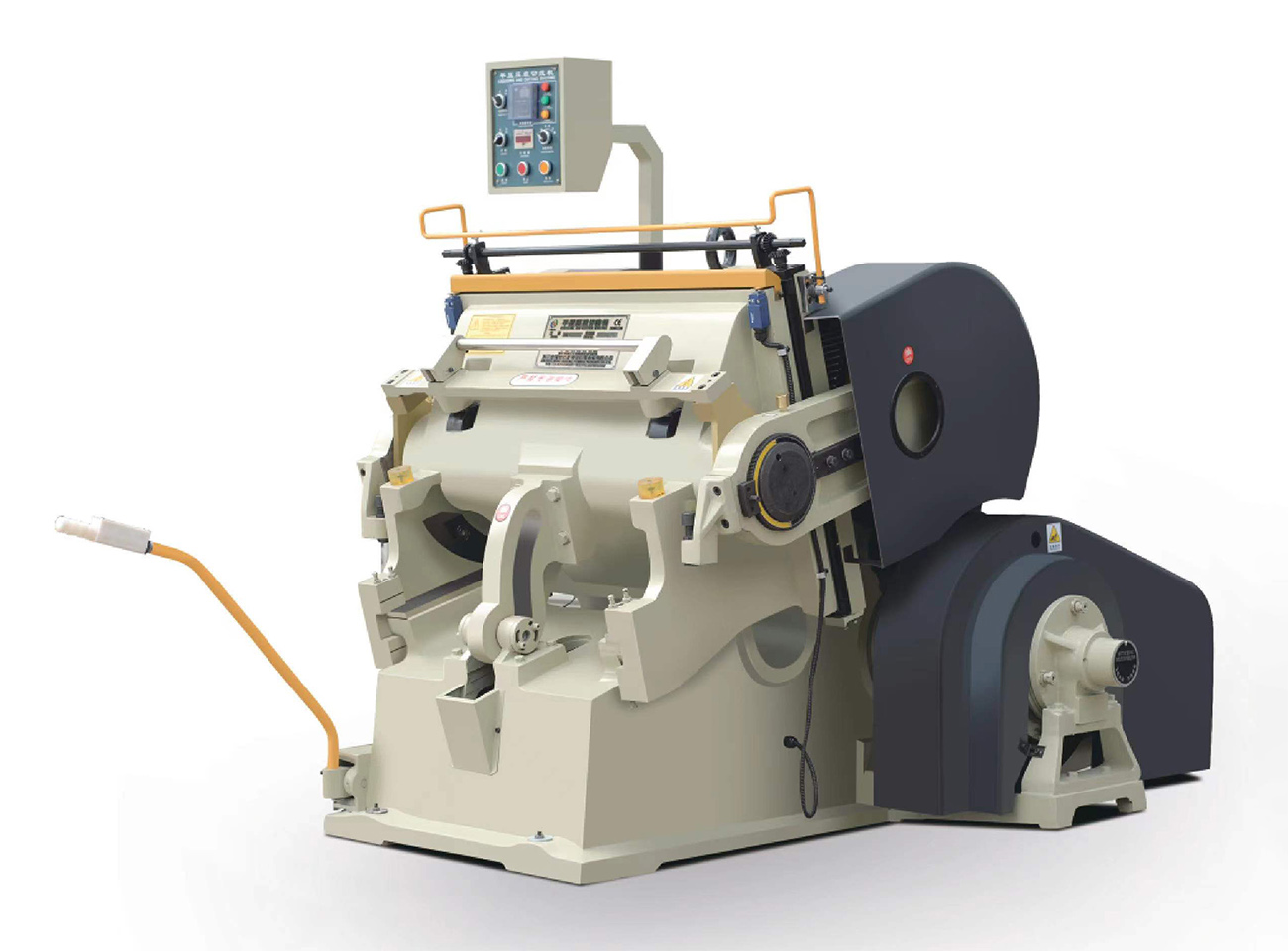

This machine is suitable for untra-large size of paper board, cardboard, greyboard, corrugated cardboard, plastic sheet and leather product cutting and creasing. It's a very common equipment for packaging manufacturers. This machine has worm gear and worm gear reducer, which greatly reduces the labor intensity of workers. It has the advantages of large pressing force, high precision, convenient use, safe and reliable operation, etc.
Main Technical Parameters |
Model | ML1400 | ML1300 | ML-1100 | ML-900 | ML-700 |
Product Size | 1400*1000mm | 1300*920mm | 1100*800mm | 930*670mm | 720*510mm |
Creasing Length | 40m | 40m | 32m | 25m | 15m |
Machine Power | 5.5KW | 5.5KW | 4KW | 4KW | 2.2KW |
Machine weight | 6500kg | 6500kg | 4500kg | 3000kg | 2000kg |
Dimension | 1800*2220*1650mm | 1800*2120*1650mm | 1800*1900*1480mm | 1780*1590*1450mm | 1300*1300*1700mm |
Working Speed | 0-20 times/min | 0-20 times/min | 0-20 times/min | 0-25 times/min | 0-25 times/min |
Main Features
1. The fuselage is made of high-quality materials and has high strength as a whole part.
2. Adopt 4-axis helical gear structure to run smoothly, with large pressing force and low noise.
3. The single-plate electromagnetic clutch is sensitive and reliable in action.
4. The height for operation is reasonably arranged and the opening angle of the press frame is large.
5. The electrical system is designed according to IEC standards.
6. There are three functions of single sheet creasing, continuous creasing and opening delay: the delay range is adjustable.
7. The safety protection system is reliable.
8. Centralized lubrication system.
