SPECIFICATION

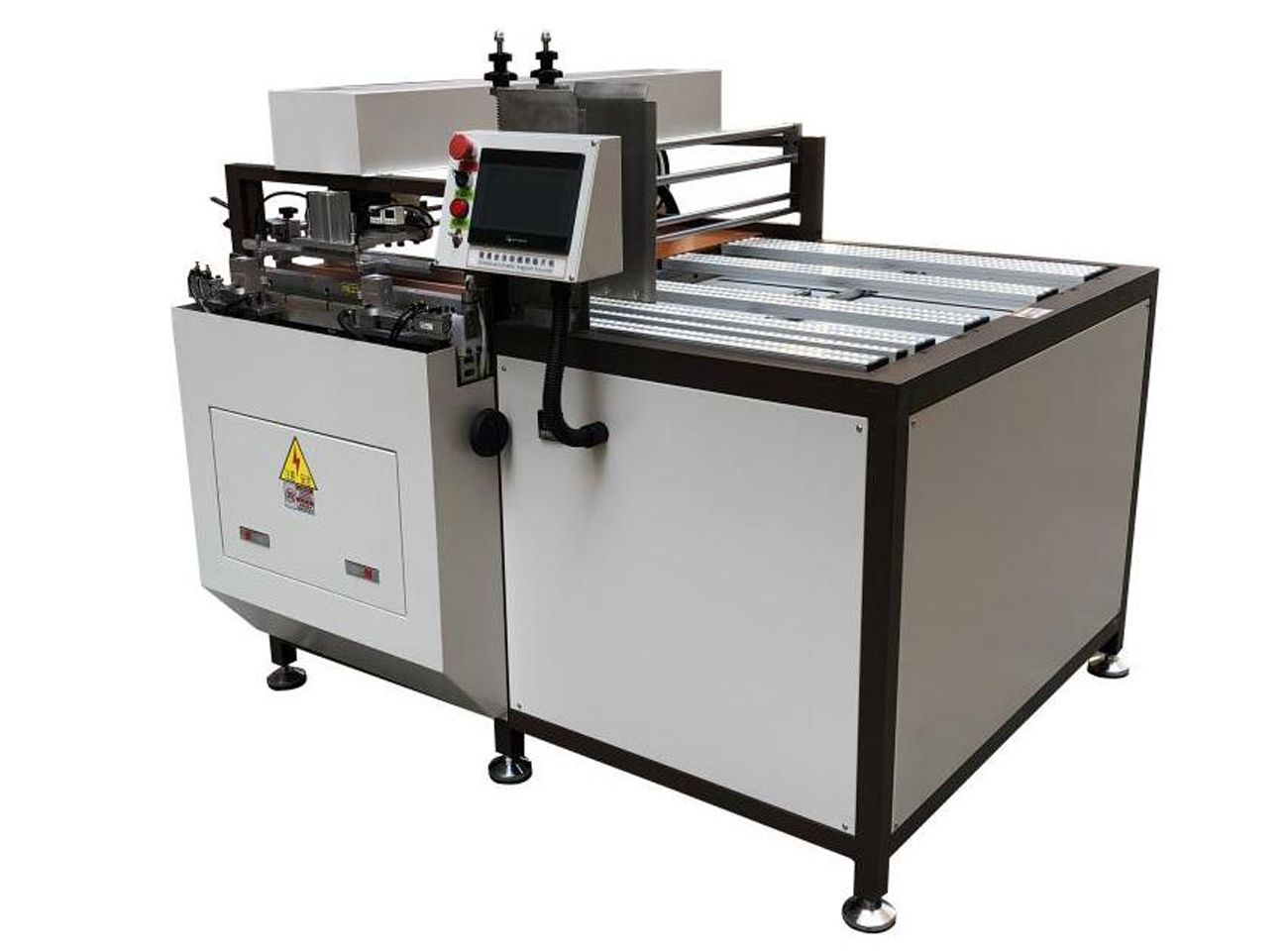

JDW-T1000 is designed to automate the iron sheet and magnet pasting process of many types of rigid boxes. It has the functions of automatic feeding, automatic glue dispensing and automatic magnet/iron sheet placing. This machine is known for its budget-friendly price, simple work flow, maintenance and easy operation.
Main Technical Parameters |
Max cardboard size | 600mm×1000mm |
Min cardboard size | 50mm×55mm |
Cardboard thickness | 1-3mm |
Max board stacking height | 400mm(non-stop feeding) |
Max iron sheet stacking height | 240mm |
Max magnet stacking height | 350mm |
Magnet diameter(Oshape) | Φ6-20mm |
Magnet dimension(口 shape) | Min6*10mm Max 15*20mm |
Production Speed | 30-50pcs/min |
Positioning accuracy | ≤ ± 0.1mm |
Main Features
1. This machine uses a queued working mode, with double paperboard pasting functions, it’s able to seamlessly paste the magnetic/iron sheet onto two different paper boards.
2. Fully automatic workflow, the machine automatically feeds paper boards, automatically picks magnetic & iron sheets and dip them into glue, automatically paste magnetic & iron sheet, and automatically receives finished products.
3. The machine feeding system is a queue & push design, it can continuously push the paperboard, no stopping when the operator adds more material.
4. The conveyor panel has guide belts, which will correct the position and direction of the paper board, this helps the machine to paste more accurately.
5. We provide one set of mold that is multifunctional, able to work on round, rectangular or square iron sheets or magnets. One mold that can meet all your needs for regular products.
