SPECIFICATION

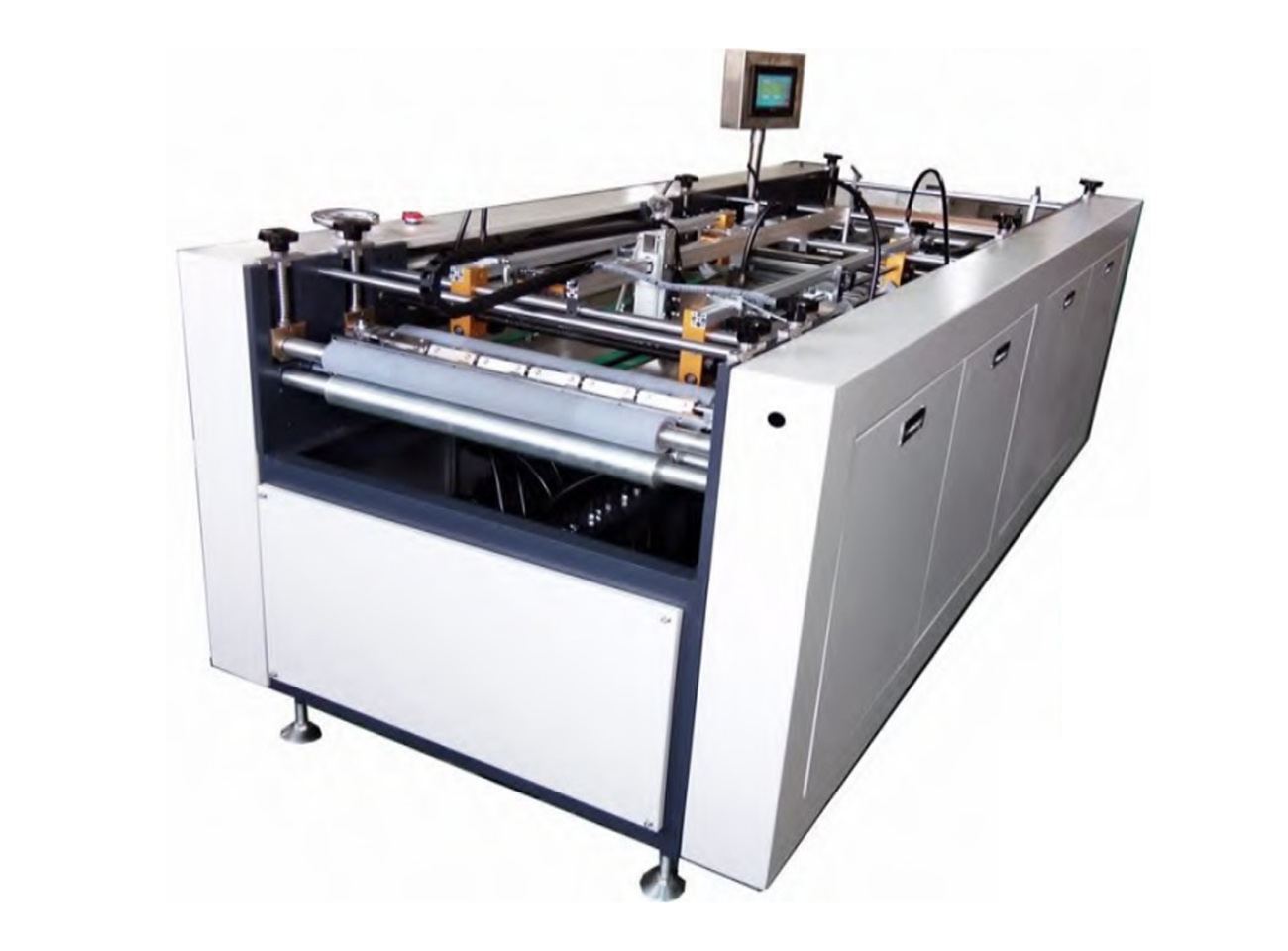

YS-900/1200 Rigid cover edge wrapping machine automates case edge folding/wrapping process. 4 sizes available for different needs. It works great as an automatic case maker production line with a paper gluing feeder.

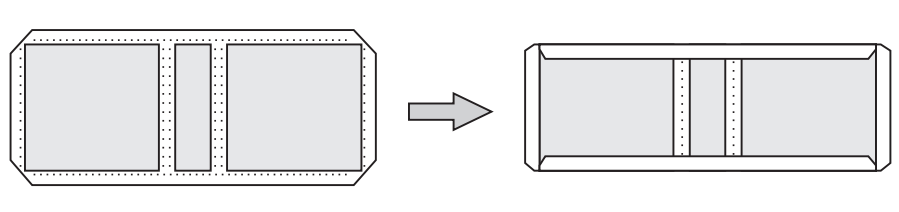

Working Flow
Main Technical Parameters |
Max product size YS900 | 450mm×900mm |
Max product size YS1200 | 650mm×1200mm |
Min product size | 80mm×200mm |
Speed | 20-30Pcs/min |
Machine power | 2.5kw/220v |
Machine size | 2500×1250×1100mm |
Machine weight | 800kg |
Main features
1. YS-900/1200 Rigid cover wrapping machines adopt unique CAM servo drive mechanism, high speed, high stability.
2. Can be matched easily with common case making line, positioning line, whether semi or fully automatic, direct docking, no need for modi?cation of current product line.
3. Compared with the air motor, there are less wearing parts in the machine, it doesn’t need an air compressor and operates orderly.
4. It has a stable and long service life.
5. This machine can be customized to make very large or small size hard cases, as per customer’s needs.
