SPECIFICATION

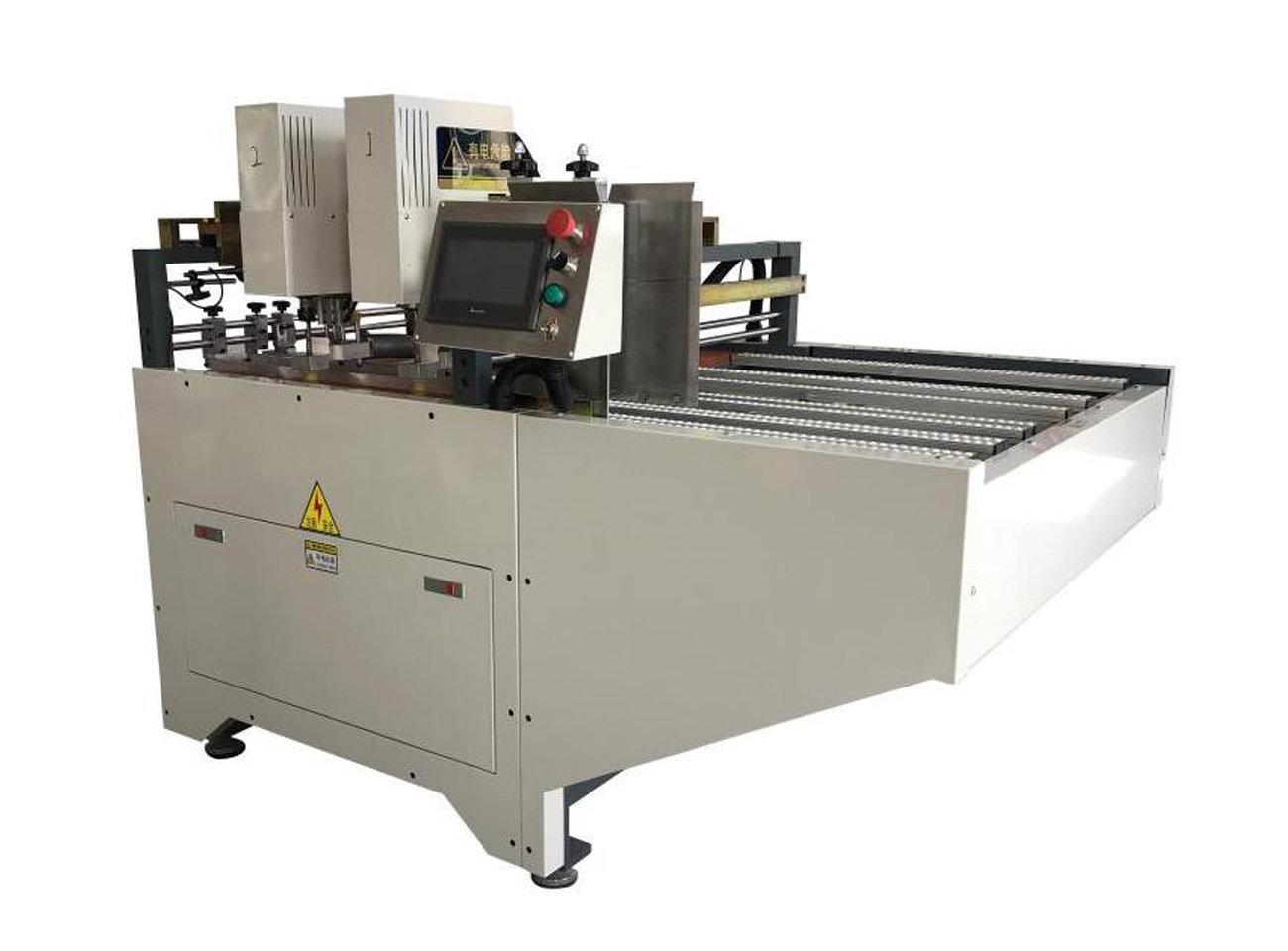

JDW-Z1000 Automatic drilling machine is designed to automate the paperboard drilling process. It’s simple to understand, easy to operate, quick to learn and very budget-friendly.
Main Technical Parameters |
Max cardboard size | 600mm×1000mm |
Min cardboard size | 50mm×55mm |
Cardboard thickness | 1-3mm |
Max board stacking height | 400mm(non-stop feeding) |
Production speed | 30-50pcs/min |
Hole diameter | Φ8-20mm |
Drilling bit chuck size | Φ10 |
Space between holes (normal mode) | Min 120mm/Max 600mm |
Space between holes (Pair mode) | Min 0mm/Max 600mm |
Pressure | 0.6-0.8Mpa |
Main Features
1. This machine uses a queued working mode, with double paperboard pasting functions, it’s able to seamlessly paste the magnetic/iron sheet onto two different paper boards.
2. Fully automatic work?ow, the machine automatically feeds paper boards, automatically picks magnetic & iron sheets and dip them into glue, automatically paste magnetic & iron sheet, and automatically receives finished products.
3. The machine feeding system is a queue & push design, it can continuously push the paperboard, no stopping when the operator adds more material.
4. The conveyor panel has guide belts, which will correct the position and direction of the paper board, this helps the machine to paste more accurately.
5. We provide one set of mold that is multifunctional, able to work on round, rectangular or square iron sheets or magnets. One mold that can meet all your needs for regular products.
